CyberGage®360: Fast 3D Scans – Simple as 1-2-3!

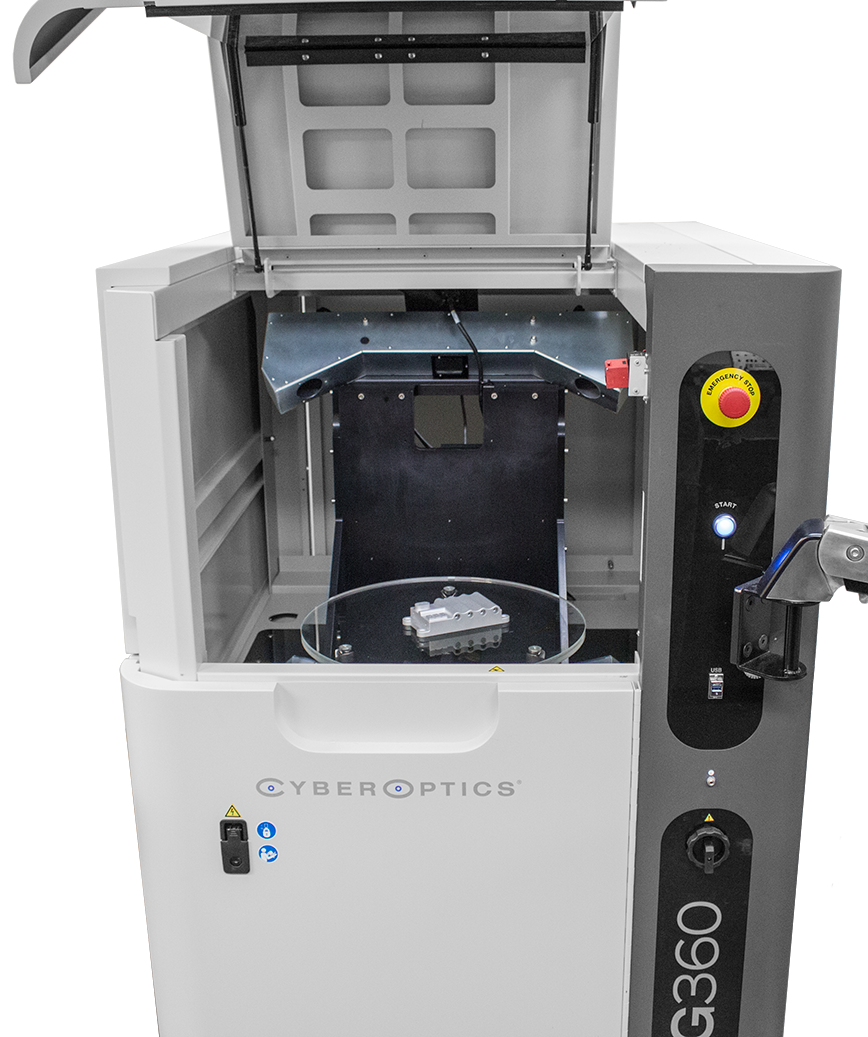

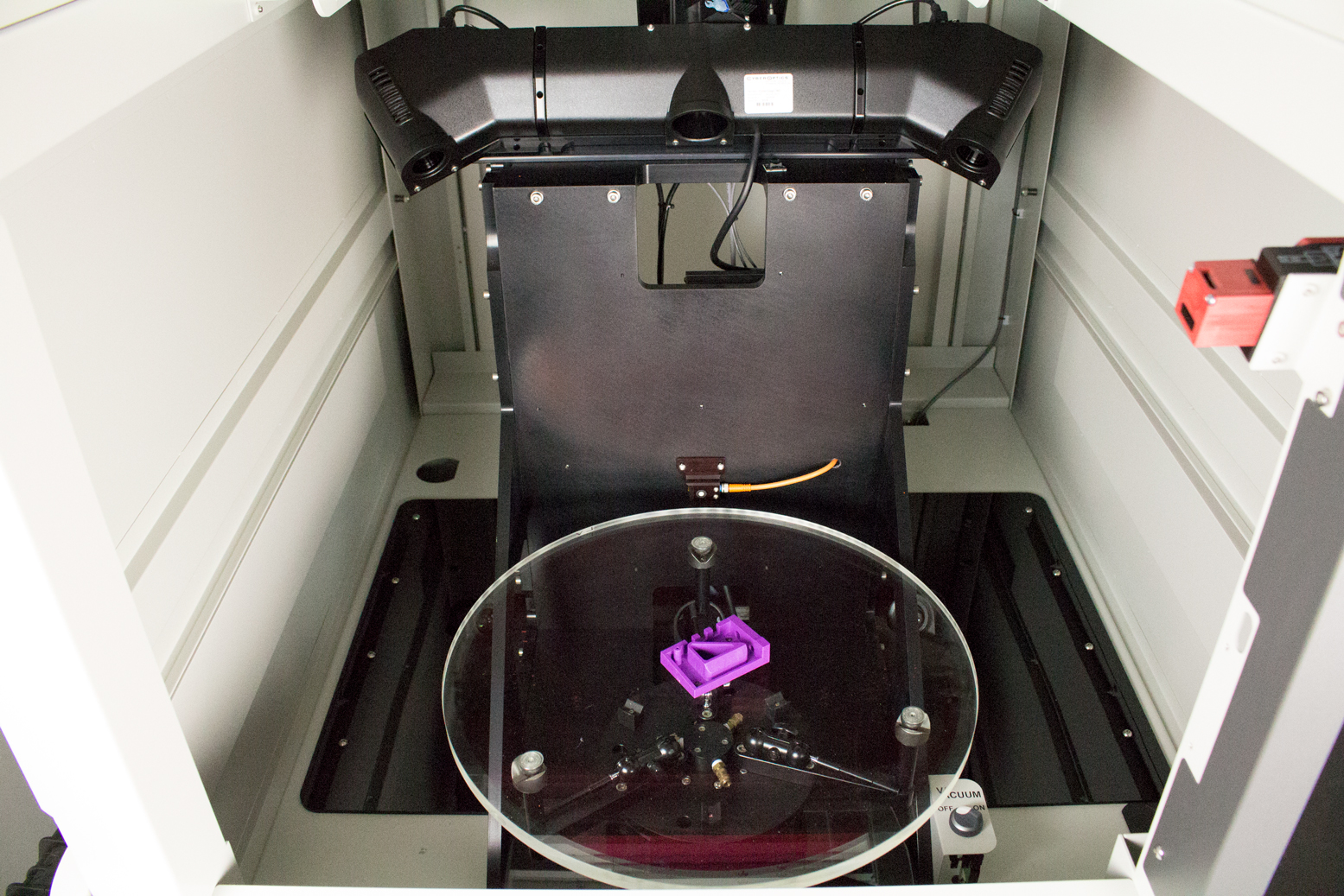

Introducing the new CyberGage®360: metrology-grade, ultra fast, one-button automated 3D scanning/inspection system!
Unprecedented combination of speed, accuracy and one-button simplicity for non-contact automated 3D scanning inspection.
Dramatically Speeds Up Quality Assurance of Incoming Parts Inspection & In-Process Inspection of components on the manufacturing floor; Lowers Cost of Quality & Speeds Up Product Time-to-Market.
System Accuracy = Generates an automated, highly precise, full 360⁰ volumetric scan with NIST traceable accuracy to 7 µm + L/10000.
System Repeatability = 0.005mm
How Does the CyberGage360 Compare with other Gauging Systems?

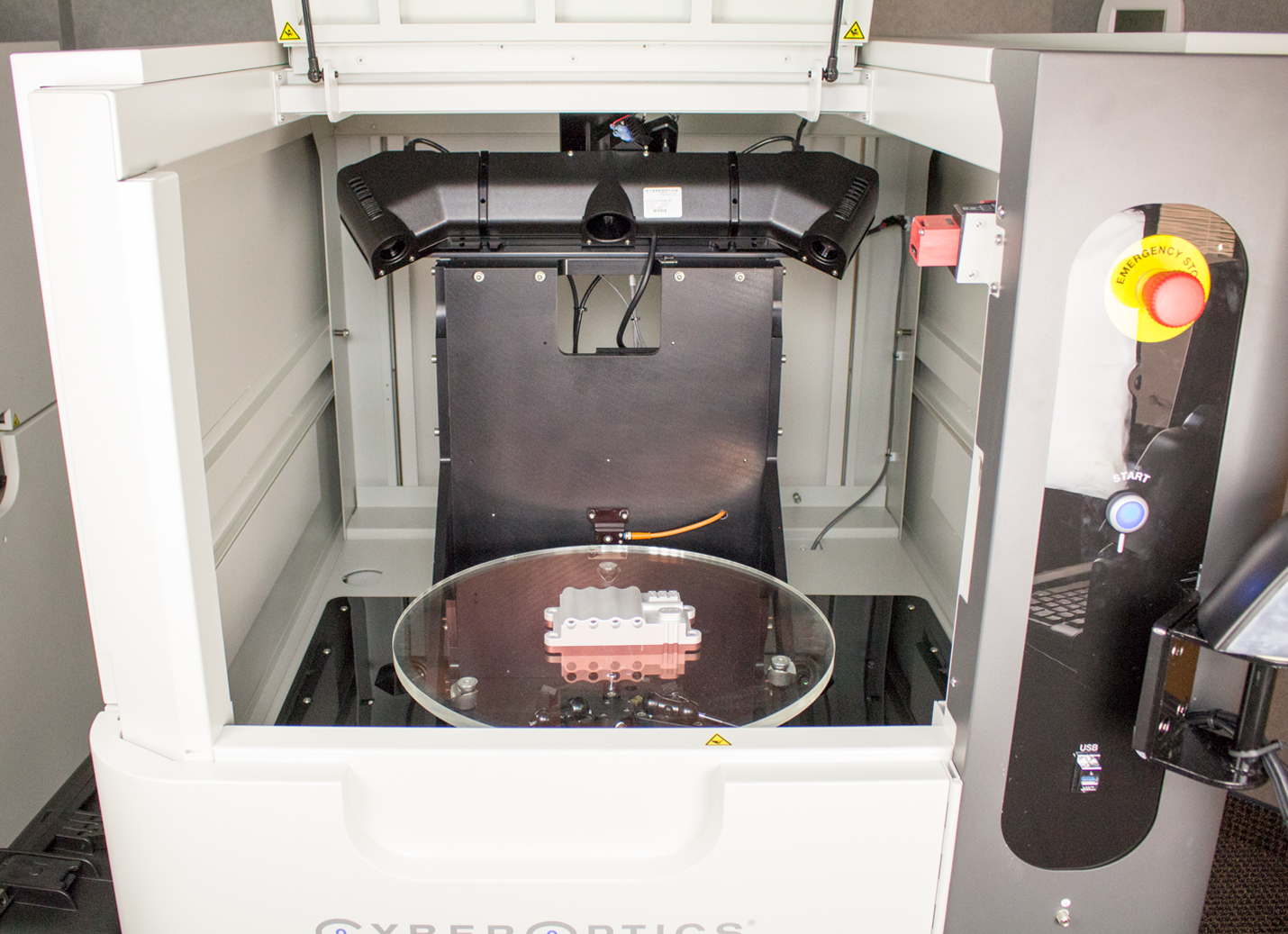

- The CyberGage360 is the only fixture-less measuring system available – no need to turn over the part
- Ease of use – other systems have complicated programming involved with hard to overcome learning curve – CyberGage360 offers one-button simplicity
- Complete part scanning – your whole part is scanned automatically in one set-up

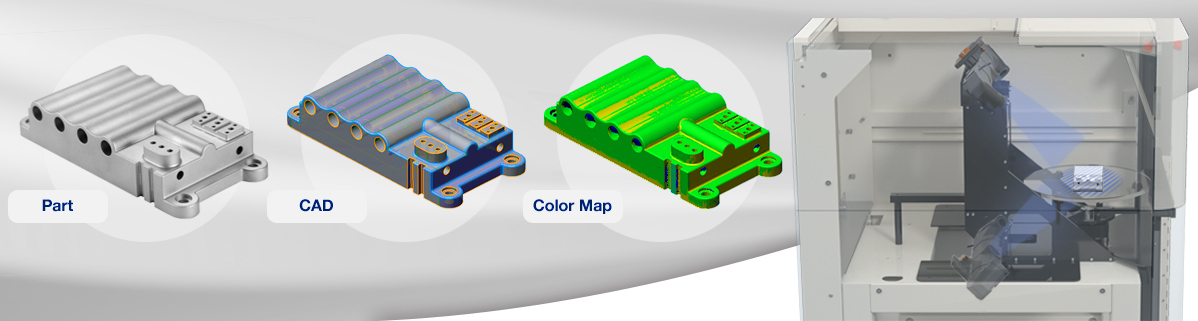

- Comparison to CAD – parts are scanned and then compared directly to CAD model

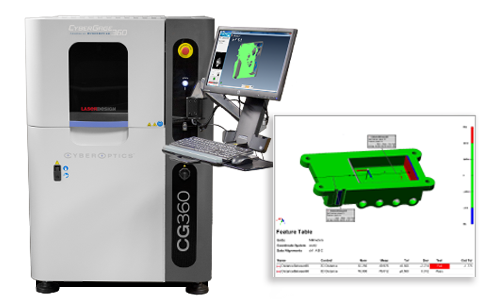

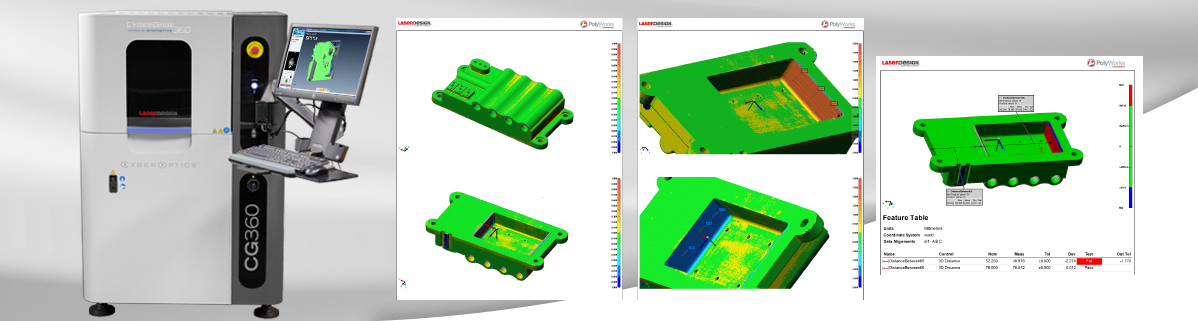

- Inspection reporting is built in and powered by Polyworks
Designed for use in general purpose metrology, the CyberGage360 has a range of potential industrial applications from automotive to aerospace to consumer electronics, where high accuracy and high speed throughput are important.
High-Precision Accuracy with MRS Technology
- Generates highly precise full 360 degree automated scan with accuracy NIST traceable to approximately 7 microns

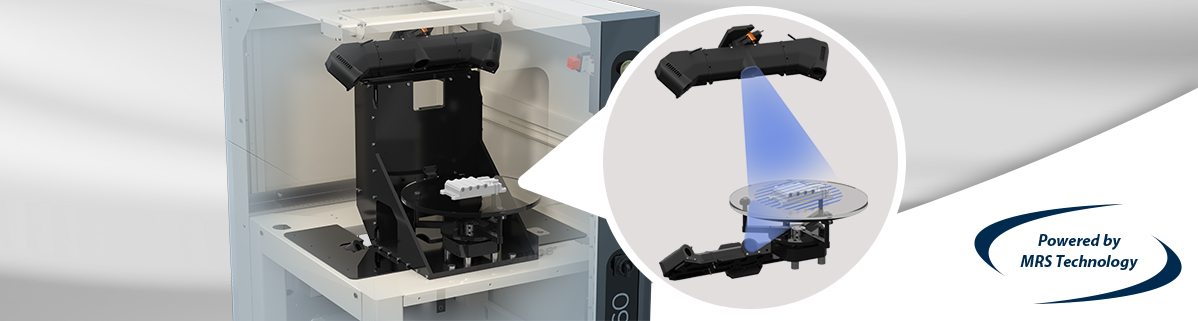

- Incorporates CyberOptics’ proprietary 3D Multi-Reflection Supression (MRS) technology that inhibits measurement distortions for a highly accurate metrology grade scan
Ease-of-use with One-Button Simplicity
- Simplifies scanning with One-button automation
- Speeds part program selection with Bar Code Part ID
- Provides factory-friendly operation with minimal training
- Programs off-line with pre-defined inspection templates
- Eliminates inspection gages based on fixtureless design
- Offers quick and simple field recalibration
Fast Scanning in Less than 3 Minutes
- Quickly generates a highly precise full 360 degree automated 3D surface scan of high tolerance parts in less than 3 minutes
- Designed for use in general purpose metrology, the CyberGage360 has a range of potential industrial applications from automotive to aerospace, where high accuracy and high speed throughput are important.
